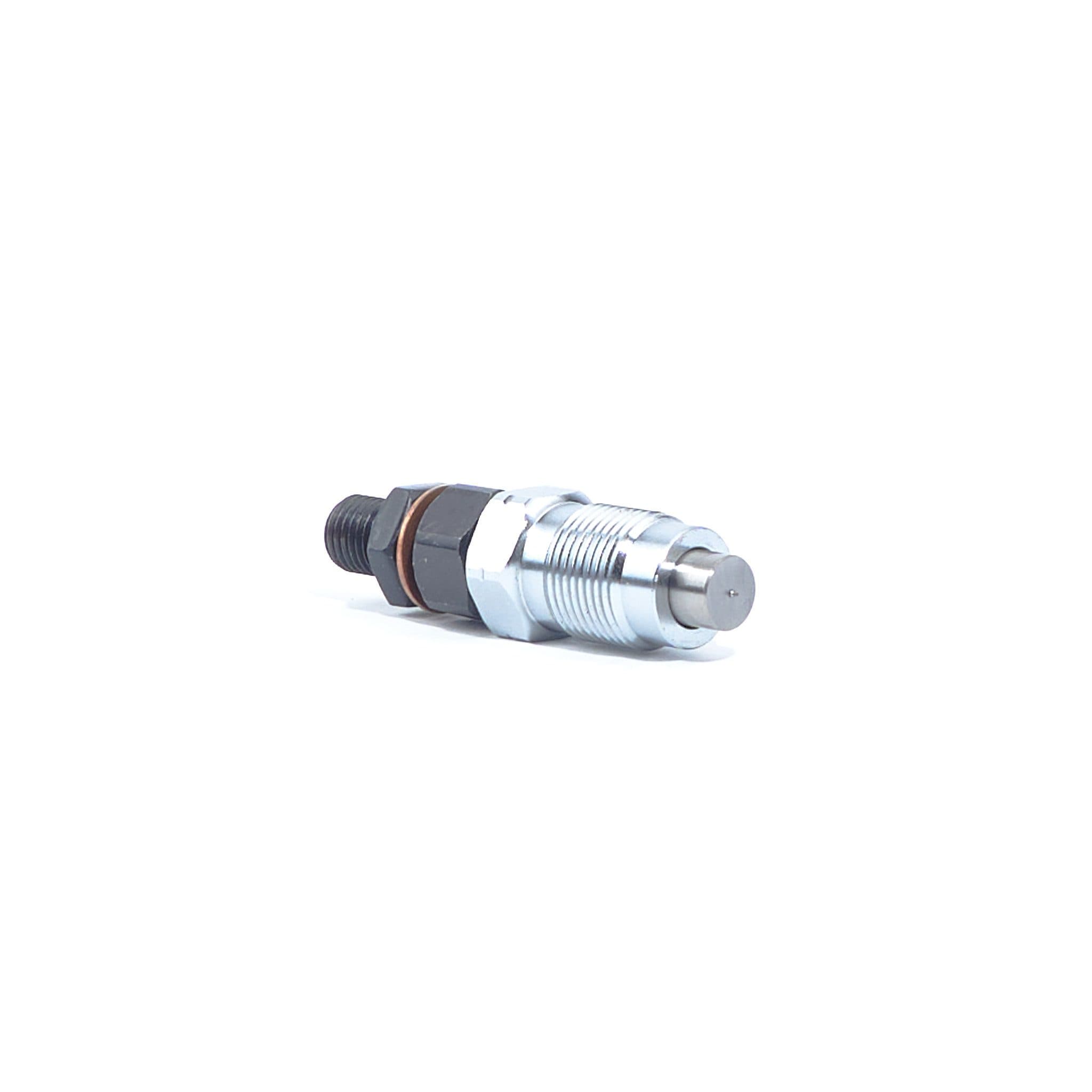

Complete Fuel Injector Kubota engine D722 - D782 - D902 | Z402(Aixam) - Z482 - Z602 | Nanni | Beta | Schäffer

Exclusive from our own production line: a complete fuel injector assembly, fully assembled and adjusted to the correct opening pressure. This ‘Snelparts‘ injector is ready for immediate installation.

Specifically developed for compact Kubota 2- and 3-cylinder engines. These engines often run at high RPMs; a fresh fuel injector immediately ensures less smoke, lower consumption, and better starting performance.

Expert advice: This fuel injector is widely used in Moped Cars (such as Aixam).

• With these small engines, atomization is critical. Preferably replace them as a set to prevent vibrations.

• Don't forget to replace the copper washer under the fuel injector (this seals against compression).

technical specifications

• Type: Complete Injector Holder + Nozzle

• Engine Code: Kubota Super Mini (Z482, Z602, D662, D722, D782, D902)

• System: E-TVCS (Indirect Injection)

• Setting: approx. 135 – 145 Bar

Kubota

• A-13, A-14
• B52, B1610, B1220D, B1620D, B7300HSD, B7400HSD
• BX23S, BX24, BX25, BX25DLB, BX25DLB-1, BX1800, BX1800D, BX1830D, BX1850, BX1850D, BX1860, BX1860D, BX1870D, BX1880, BX2360, BX2370, BX2370-1, BX2380
• GB14, G1900, G1900S
• GF1800, GF1800E
• GL6000-STD, GL7000-AUS, GL7000-STD, GL7000-USA, GL7000-USA-TM
• GR1600EC2, GR2110, GR2120, GR2120B, GR2120B-2
• J106-AUS, J106-STD, J107-SA, J107-STD
• KC110HR-4
• K008, K008-3, K008-3(KTC/KCL)
• KX018-4, KX019-04, KX41-3
• RTV900, RTV900G, RTV900G9, RTV900R, RTV900T9, RTV900W9, RTV900W9SE, RTV900XTG, RTV900XTR, RTV900XTS, RTV900XTT, RTV900XTW, RTV-X900G, RTV-X900R, RTV-X900W
• T1600H
• TG1860-48, TG1860AAB54, TG186054
• U17
• ZD18, ZD21, ZD1011, ZD1021, ZD221, ZD321, ZD321N, ZD323

Aixam

• 400 (1997-2004), 400.4 (1997-2004), 400 Evolution (1997-2004), 500.4 (1997-2004), 500.4 Minivan (1997-2004), 500.4
• Pick-Up (1997-2004), 721 (2005-2008), 741 (2005-2008), Scouty 2005-2008, Crossline 2005-2008, City 2008-2010,
• Roadline 2008-2010, Crossline 2008-2010, Scouty 2008-2010, City 2010-2013, Crossline 2010-2013,
• Crossover 2010-2013, GTO 2010-2013, Coupe 2010-2013, City 2013-2016,
• Coupe 2013-2016, Crossline 2013-2016, Crossover 2013-2016, MEGA 1, MEGA 2, Pro D-Truck

Ausa

• D150RM 4X2, D150RM 4X4, D150RMA 4X2, D150RMA 4X4, D150RMG 4X2, D150RMG 4X4, D175RMS 4X2, D175RMS 4X4

Avant

• 423, 523
• R20, 320, 320+, 320S, 320S+, 520, 520+, 523+
• 314, 314S, 514

Bobcat

• 316, 323, 320,
• 316, 319, 322, 323, E08, E10, E14, E16, E17, E17Z, E19, 2200D, 2200S, 2300
• MT55

Beta Marine

• Beta 10, Beta 14, Beta 16, Beta 20, Beta 25 (Based on Kubota Super Mini)

Giant

• D204SW, D254SW, D332SWT, D337T

Komatsu

• PC100-5

Takeuchi

• TB210R

Vimek

• 608, 608.2.

Wacker Neuson

• DT15

Toro

• TX525

Mariner

• 560 (B), Mariner 710 (B), IS 7.1,

Nanni Diesel

• N2.10, N2.14, N3.21

Schäffer

• 2020, 2021, 2022, 2024, 2027

Kubota engine

• D722, D782, D902
• Z402, Z482, Z602
• D722-E-BX, D722-E2-BX-2, D722-E3-BX-2, D722-E4-BX-1, D722-E4

OEM ref:

• 16001-53000, H1600-53000, 16001-53002
• 16871-53000, 16871-53002
