Complete Fuel Injector Kubota Direct Injection engine | D1503-DI | D1703-DI | V2203-DI | V2403-DI

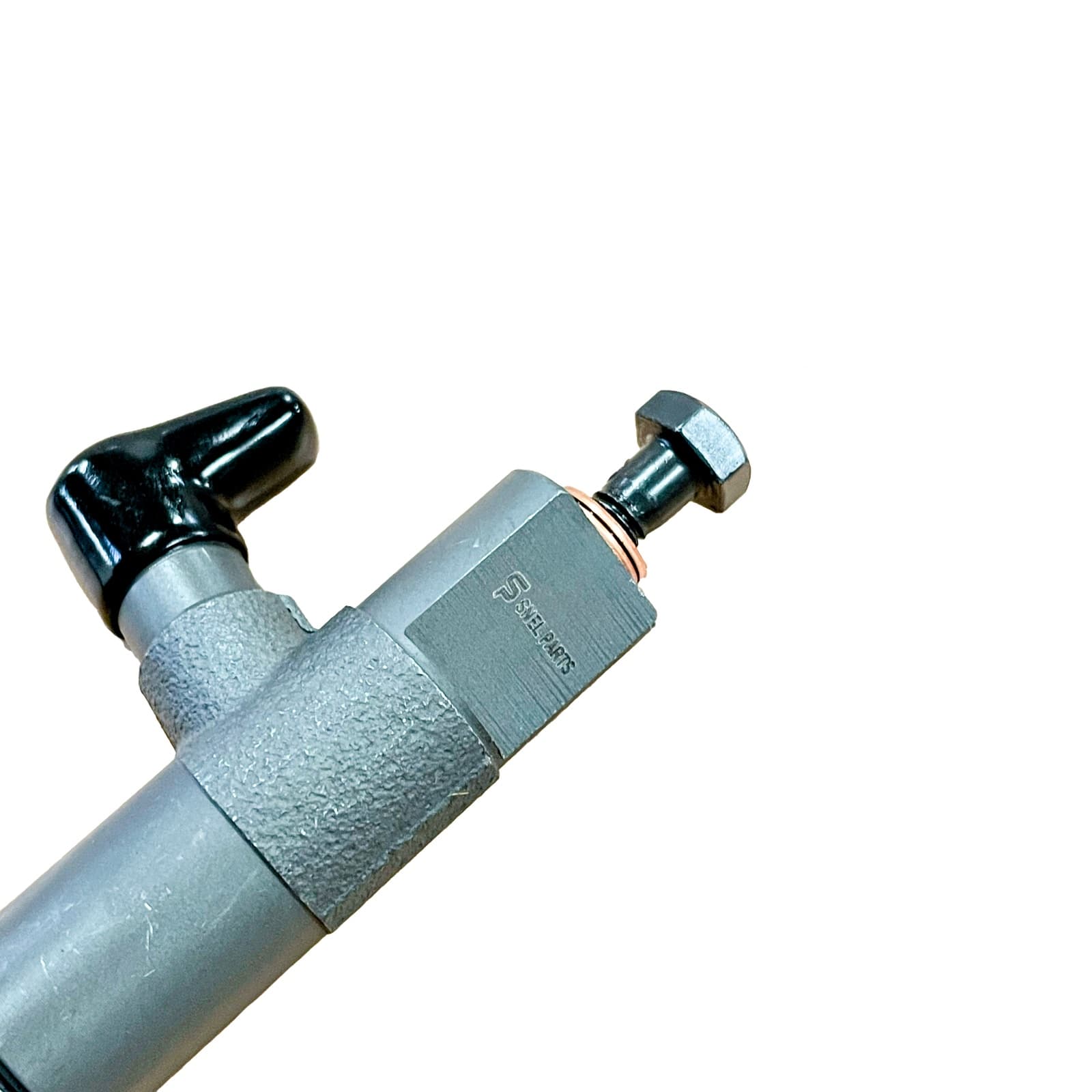

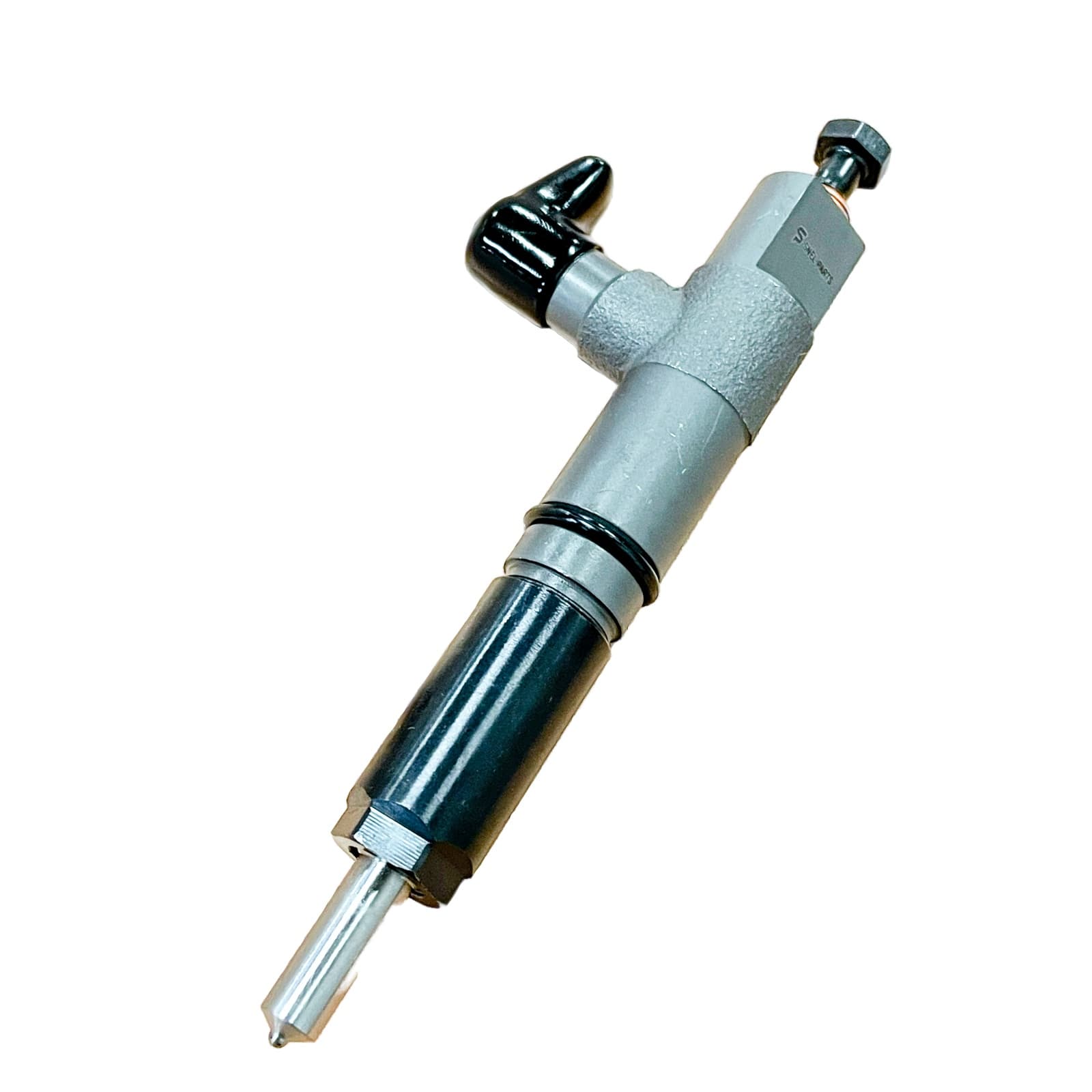

Exclusive from our own production line: a complete fuel injector assembly, fully assembled and calibrated. This 'Snelparts' injector is a modern "Pencil Injector" for Direct Injection.

advice from experience:

• NOTE: This fuel injector is exclusively for engines with Direct Injection (DI).

• Do you have an older engine with Indirect Injection (Pre-chamber)? Then you need the "thick" fuel injector. This thin "pencil injector" will not fit.

• Bobcat owners: Check your model year. The S130 and T190 come in both old (IDI) and new (DI) versions. This fuel injector is for the later models (mostly after 2004).

technical specifications

• Type: Pencil Type Injector

• System: E-CDIS (Center Direct Injection System)

• Engine code: Kubota 03-M-DI Series (D1703-DI, V2203-DI, V2403-DI)

suitable for the following models:

bobcat

• Excavators:

  • 435 (2005-2010)

  • E32, E35

  • E34 (2018 and later)

  • E45 (2010-2019), E50 (2017 and later)

• Skid Steers:

  • S130 (2004-2013 - Check if you have the DI version!)

  • S150 (2004-2013)

  • S175 (2001-2012)

  • S205 (2005-2013)

  • S450 (2014-2017 & 2017+)

  • S510, S530 (2013 and later)

• Track Loaders:

  • T110 (2009-2018 & 2018+)

  • T140 (2006-2009)

  • T180, T180 H (2004-2008)

  • T190, T190 H (2004-2008)

bomag

• BW-100AC-4, BW-100AD-4 (2004-2008)

• BW-100SL-5 (2015 and later)

• BW-120AC-4, BW-120AD-4 (2004-2008)

• BW-120SL-5 (2015 and later)

• BW-125AC-4, BW-125AD-4 (2004-2008)

dynapac

• CC1100C, CC1200C

eurocomach

• ES 40ZT, ES 400ZT

hyundai

• HSL650-7 (2010 and later), HSL650-7A

kubota (machines)

• KX037-4 (2018 and later)

• KX91-3S2

• U35-3S2, U35-4 (2012 and later)

• U36-4 (2018 and later)

kubota (tractors)

• L2501, L2501-HST

kubota engine

• D-Series (3-cylinder DI):

  • D1503-M-DI, D1503-M-DI-T-E2B

  • D1703-M-DI, D1703-M-DI-E2B, D1703-M-DI-E3B, D1703-M-DI-E4, D1703-M-DI-E4-EU, D1703-M-DI-EF03

• V-Series (4-cylinder DI):

  • V2003-M-DI-T-E2B

  • V2203-M-DI-E2B, V2203-M-DI-E2B-BC-3

  • V2403-M-DI, V2403-M-DI-E2B, V2403-M-DI-E3B, V2403-M-DI-E4

  • V2403-M-DI-T (Turbocharger), V2403-M-DI-TE2B, V2403-M-DI-TE3B

sakai

• SW354

• TW354, TW504

oem reference:

• Kubota: 1G796-53000, 1G796-53001, 1G796-53002, 1G796-53004
• Bobcat: 6685556 (common for these models).
