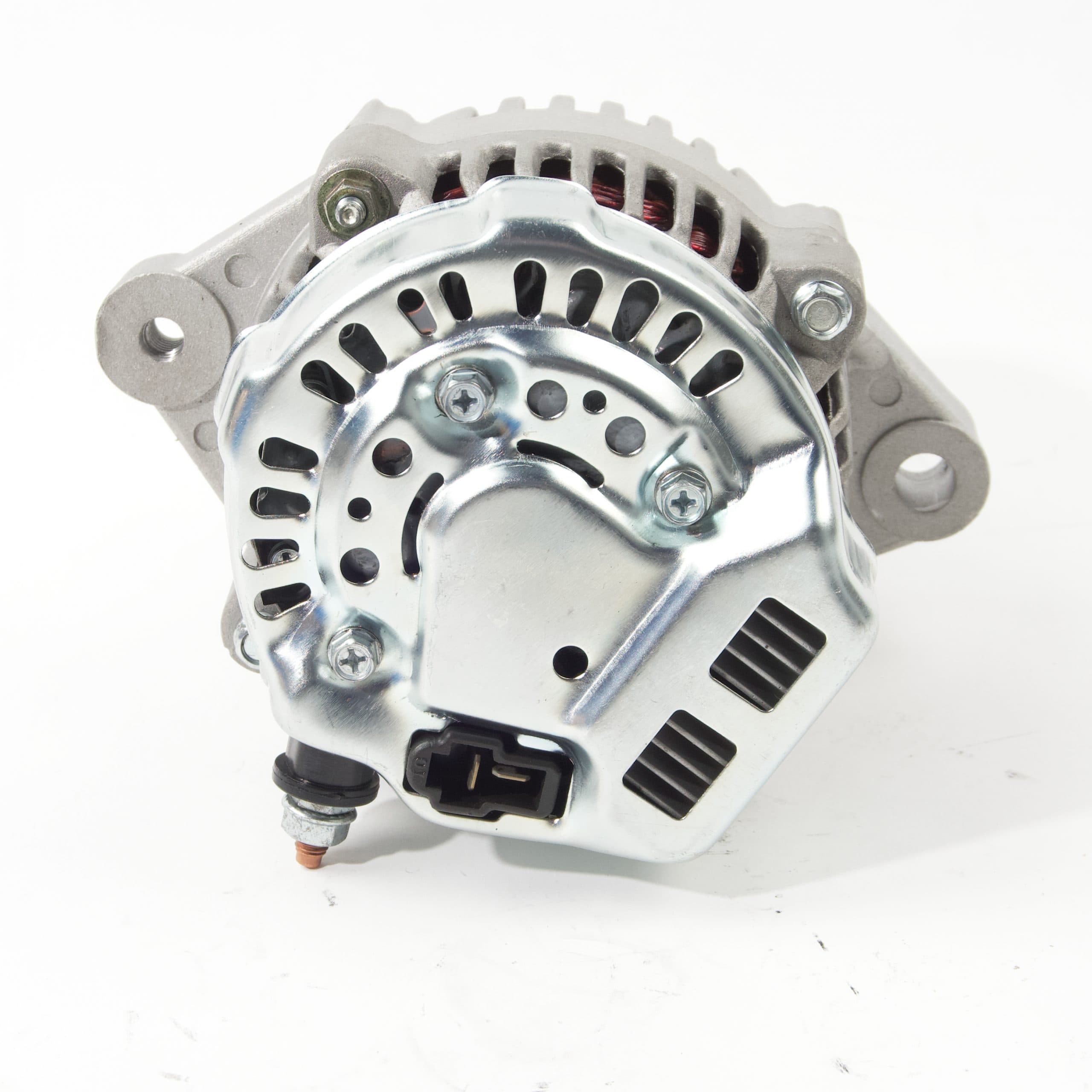

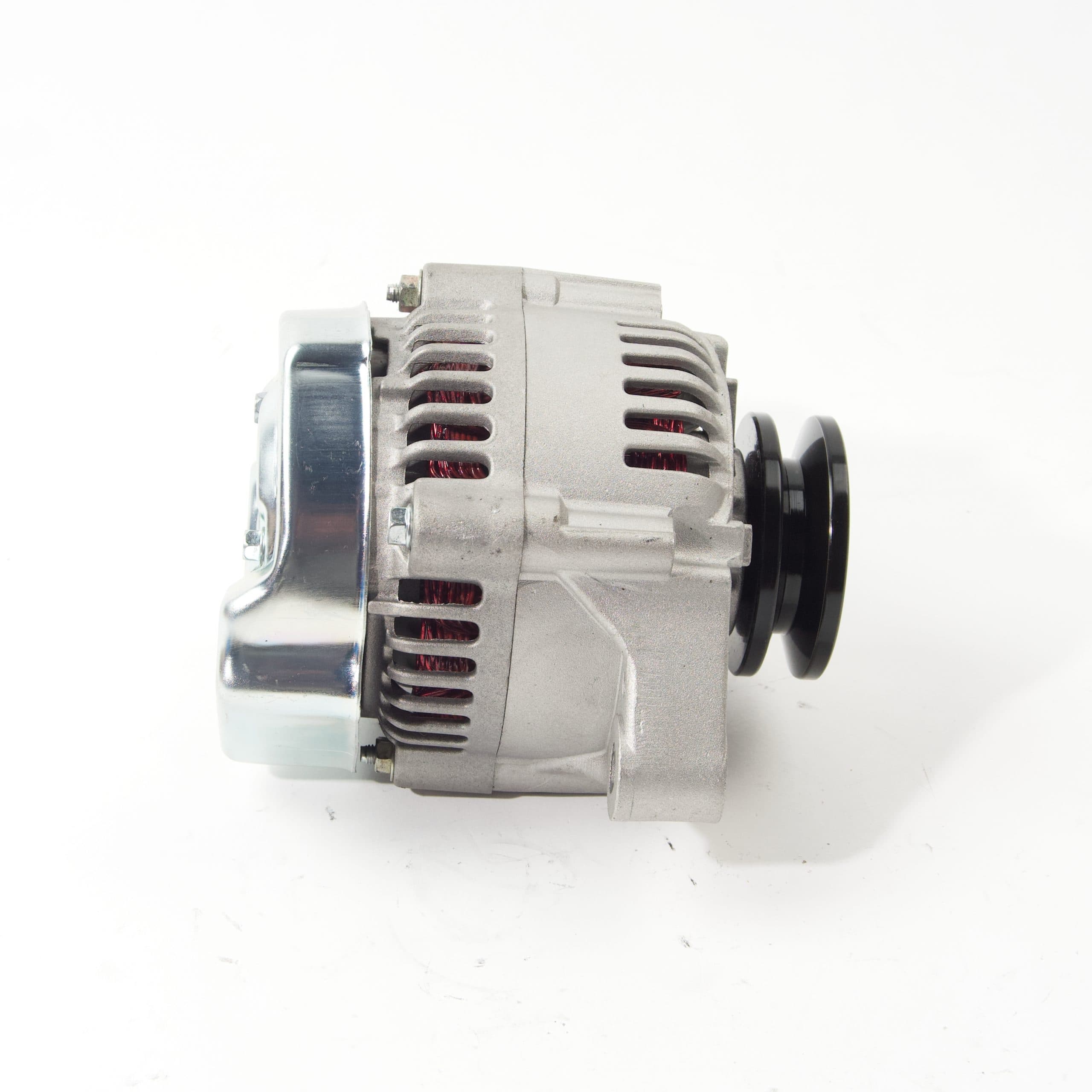

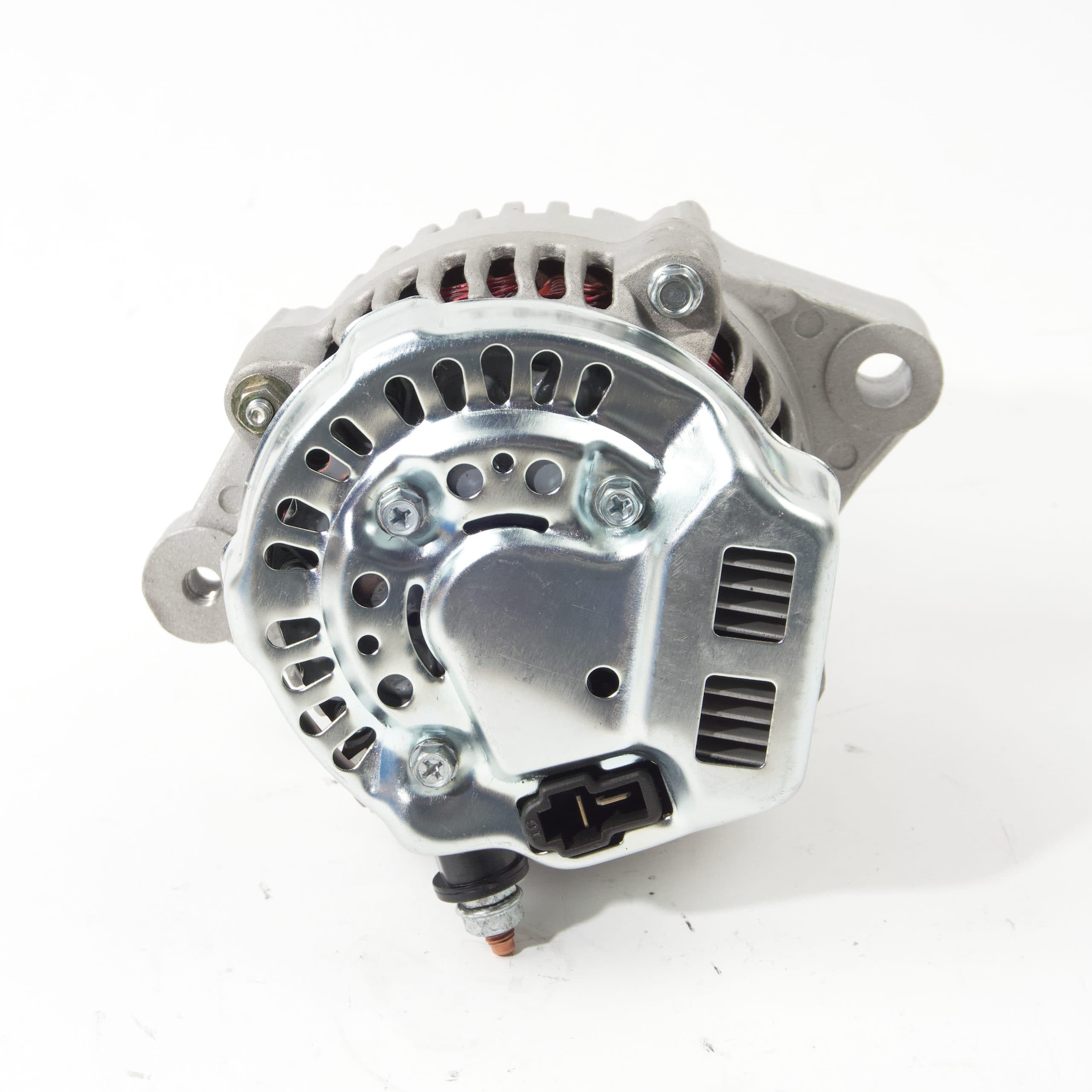

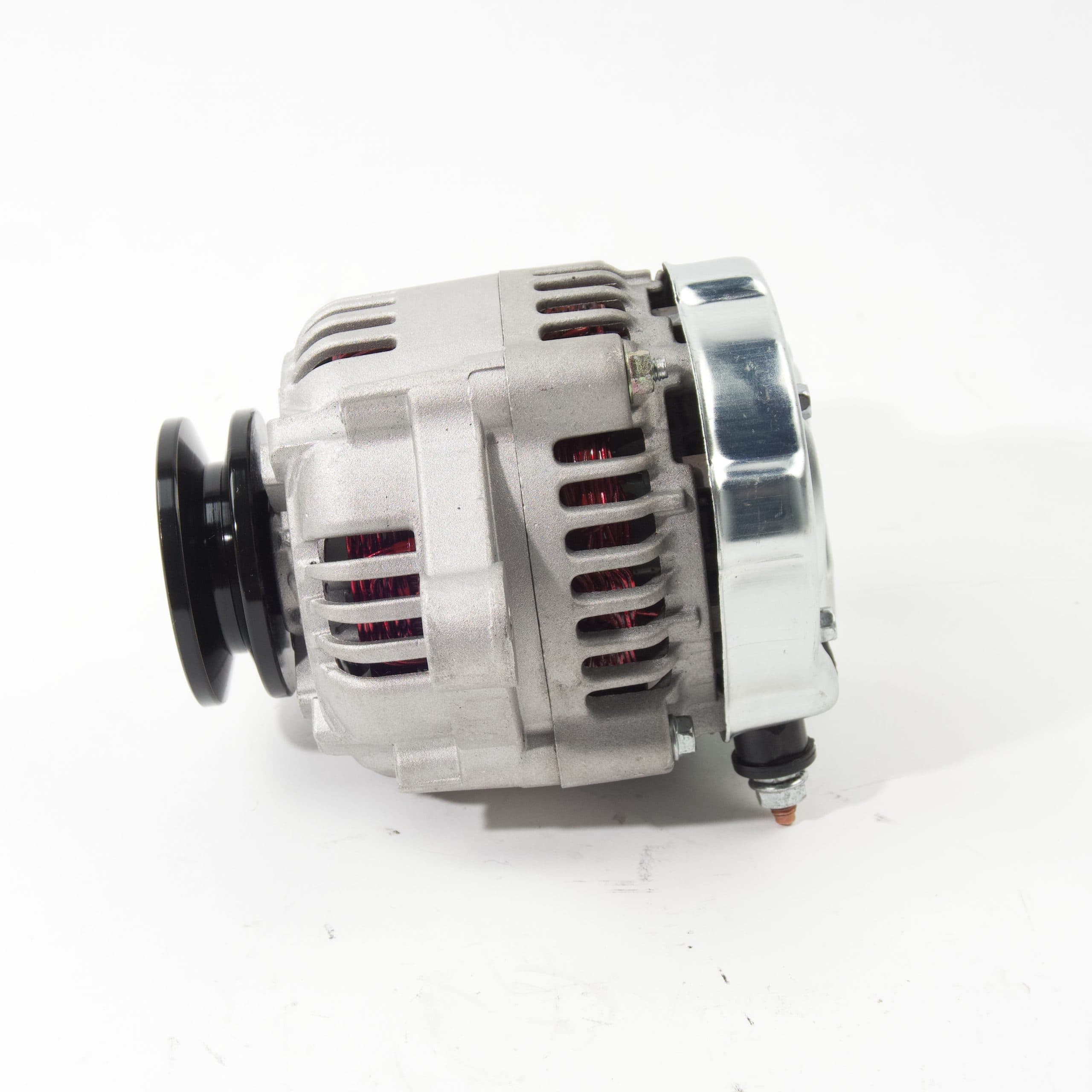

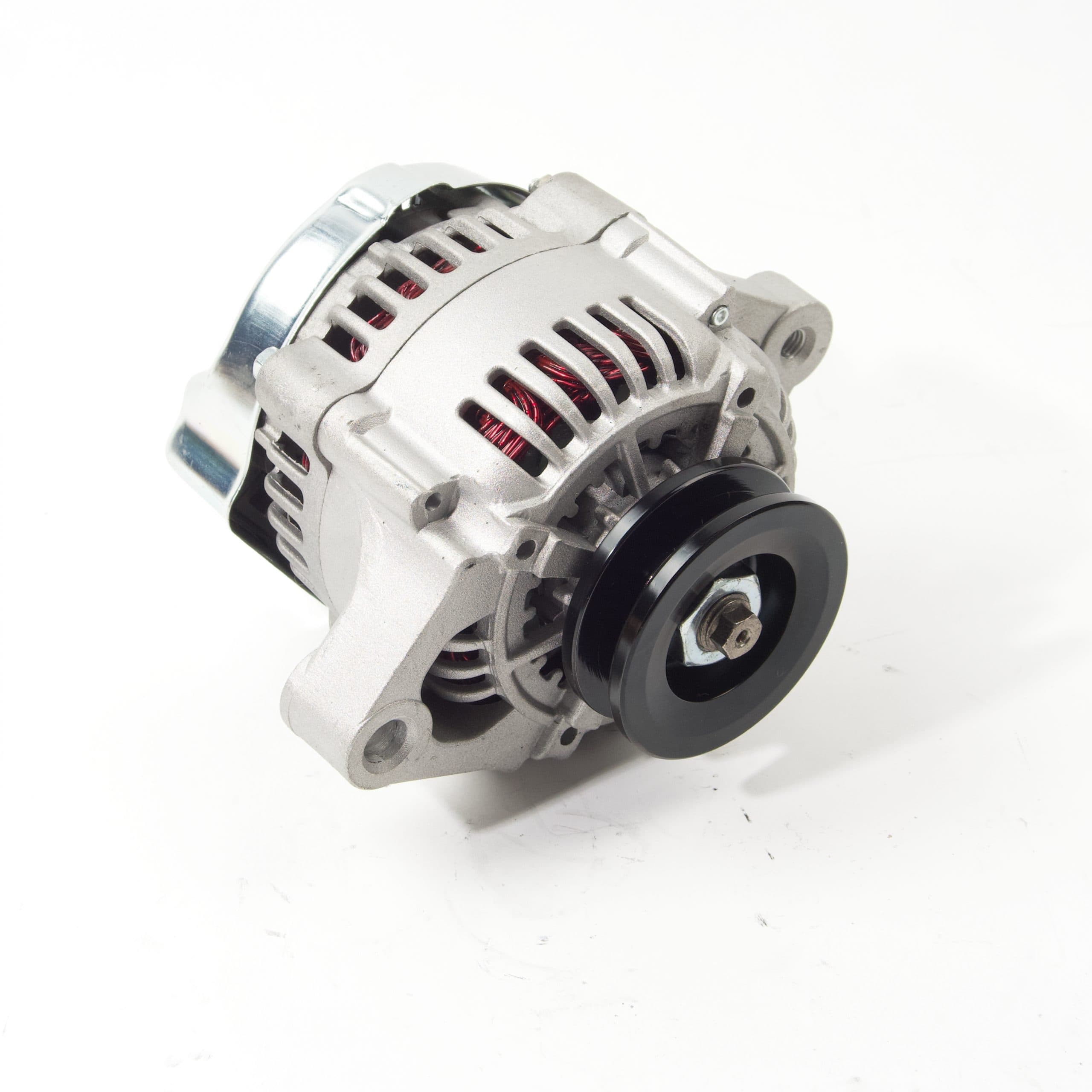

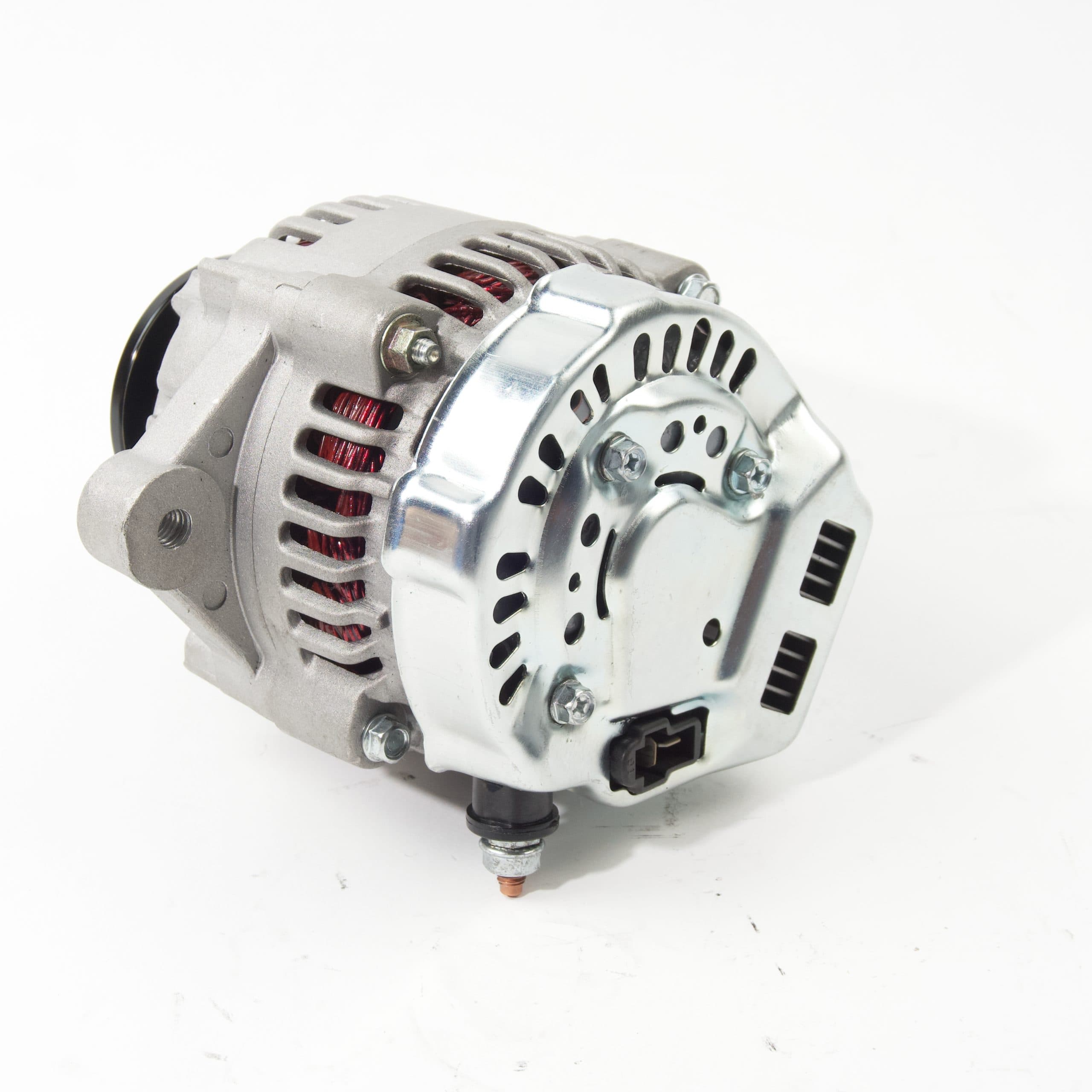

Dynamo Iseki TA207 - TA267 | SIAL TF15 - TF23 | TG21 - TG333 | TM3200 - TM3240 | Kubota GL19 - GL261 | Hinomoto NX

De dynamo is door een gecertificeerde leverancier geleverd en volledig getest. Met grote zorg zijn de compatibele modellen erbij gezocht!

Kubota

• GL19, GL21, GL23, GL25, GL26, GL27
• GL200, GL201, GL220, GL221, GL240, GL241, GL260, GL261
• L2650DT, L2650F, L2650GST, L2950DT, L2950DTGST, L2950F, L2950GST, L3450DTGST, L3450F, L3450GST, L3650DT, L3650DTGST, L3650DTW, L3650F, L3650GST, L3650T

Case

• 1825B, 1838, 460, 6010

Komatsu

• FD20-11, FD20DC-11, FD20SDC-11, FD20ST-11, FD20T-11, FD20WC-11, FD30-11, FD30H-11, FD30S-11, FD30S-5, FD30SV-11, FD30V-11

Hinomoto

• NX19, NX200, NX201, NX21, NX220, NX221, NX23, NX240, NX241, NX25, NX26, NX260, NX261, NX268, NX27, NX277, NX280, NX281, NX29, NX300, NX301, NX32, NX320, NX321, NX33, NX337, NX338

Iseki

• SIAL TF15, TF17, TF19, TF21, TF23
• 3030, 5030, 5035
• 3020, 3130 AL, 3265, 5135 AL, 5140 AHL Turbo, 5140 AL Turbo, 5150 AL, SF300, SF330, TF325F, TF325FH, TF327, TF330, TXG23
• SIAL TF153, TF173, TF193
• TU185, TU205, TU225, TU245
• TU320
• Landleader 07-serie TA207, TA227, TA247, TA267, TA207F, TA227F, TA247F, TA267F
• Landleader 05-serie TA215, TA235, TA255, TA275, TA215F, TA235F, TA255F, TA275F, TA525, TA525FE, TA530, TA530F
• GEAS - TG21, TG23, TG25, TG27, TG29, TG31, TG33
• GEAS -TG233, TG253, TG273, TG293
• TM15, TM17
• TM215, TM217, TM223
• TMG18
• TK527
• TM3200, TM3240

Massey Ferguson

• 1205, 1210, 1215, 1225, 1240, 1250, 1260

New holland / Ford

• 1220, MC22, TC21D, TC24D

Schaeff

• HR12

Weidemann

• 1130 CX30, 1140 CX, 1140 CX30, 1150 CX, 1150 CX30, 1230, 1230 CX30

Isuzu motor

• E3AD1, E3AE1, E3AF1, E3AG1

Iseki motor

• E3112, E3112-B07, E393, E393-B03
• E393-G01

OEM is alleen ter referentie!

• Massey Ferguson OEM nos 3704212M91, 3710471M91
• Vervangt Denso Mfg nos 100211-4440

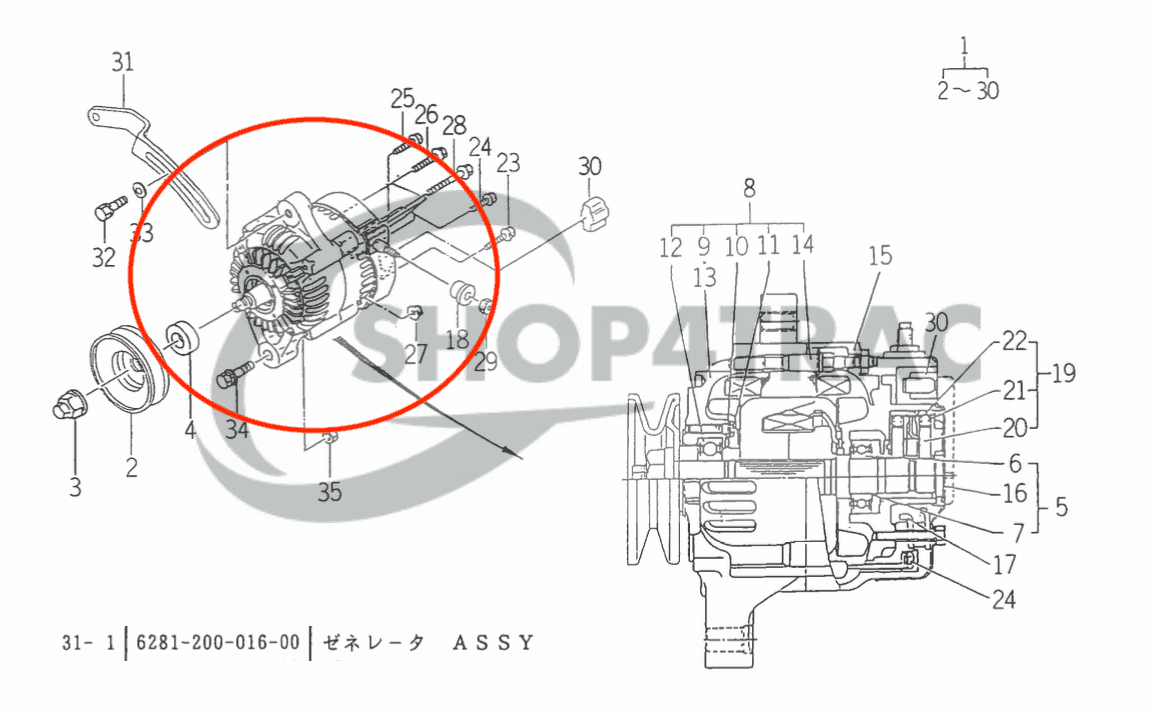

• Vervangt Iseki OEM nos 6281-200-004-0B, 6281-200-004-00, 6281-200-016-00, 62812000040, 628120000500, 6281-200-005-00, 6281-200-008-10
• Vervangt Mfg nos 12270, 290-198A, 90-29-5440
• 16427-64010, 16427-6401-0

Technisch:

• Voltage: 12
• Rotation: Clockwise
• Amperage: 40
• Pulley: 63mm
• Regulator: Internal
• Inclusief pulley
